Dust-free feeding stations are commonly used for unloading 25kg, 50kg, and 1T bags of powdery or granular materials. They operate by manually opening the bags and automatically tilting them, allowing the material to fall into the storage hopper by gravity. Dust generated during the process is filtered out by an onboard dust collector, enabling workers to operate comfortably in a clean environment.
Depending on process requirements, a screening function can be added to remove impurities; alternatively, a vacuum feeder can be used to achieve vacuum feeding.
Features of the Dust-Free Feeding Station:

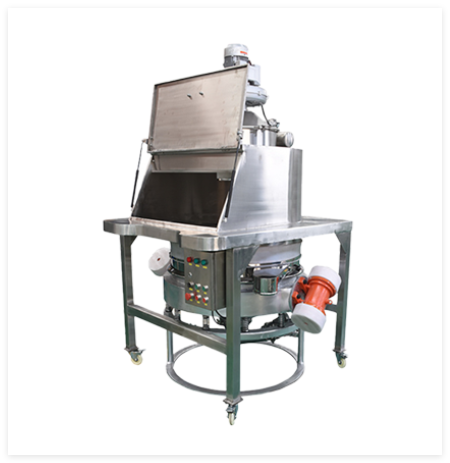

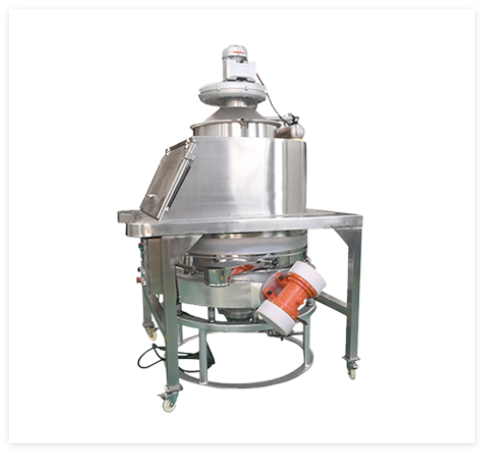

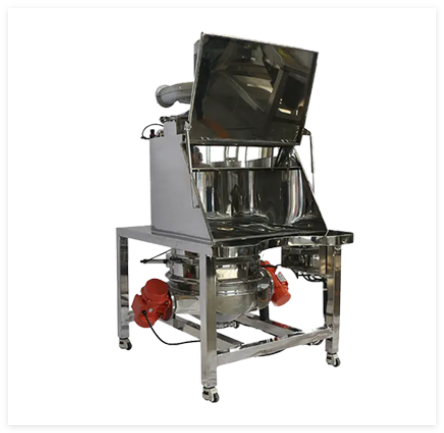

The dust-free feeding station consists of a quick-opening stainless steel feeding hopper, vibrating screen, dust collector, and controller. The operation process is as follows: Open the feeding hopper door, manually place the packaging bags on the rack, cut open the bags with a knife, and let them fall into the screen. Qualified materials are screened and enter the next process, while bags and debris remain on the screen. The equipment is equipped with a bag/cartridge filter dust collector, and the feeding process is in a negative pressure environment, with no dust leakage, greatly improving the feeding environment. The discharge port of this equipment can be connected to a vacuum feeder, screw conveyor, and various conveying equipment.

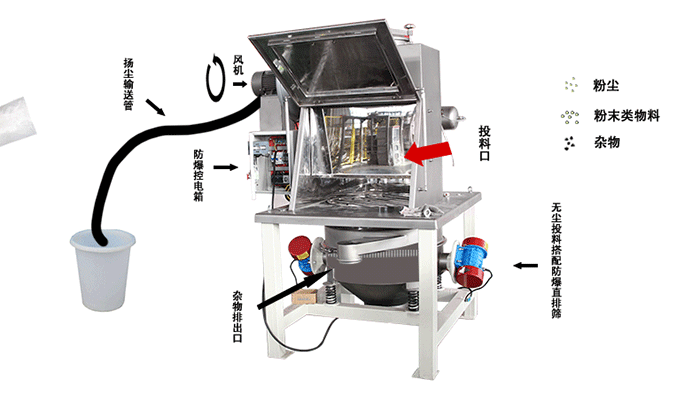

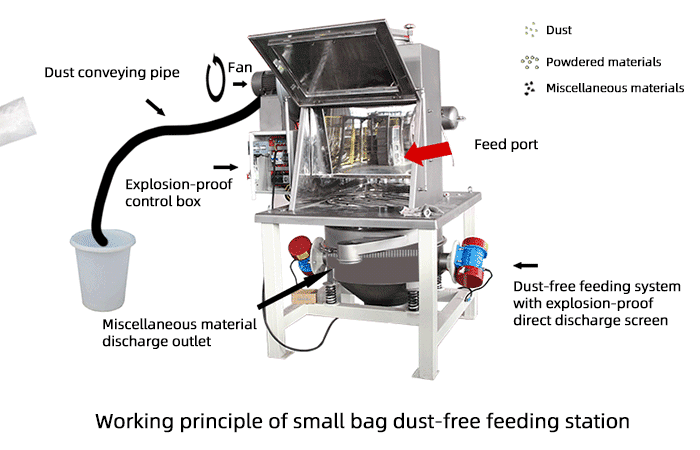

Working Principle of the Dust-Free Feeding Station
Advantages of the Dust-Free Feeding Station:
1. High degree of automation, reducing labor intensity and improving production efficiency.
2. Compact structure, small footprint, simple operation, and convenient maintenance.
3. Can be customized to meet the material characteristics and feeding needs of different industries.
4. Closed conveying effectively reduces dust leakage and improves the production environment.
5. It has high reliability and stability, ensuring the continuous and stable operation of the production line.
Dust-free feeding stations are widely used in the food, pharmaceutical, fine chemical, additive, chemical, plastics, dye, and building materials industries. They are suitable for coffee, milk powder, flour, mildew inhibitors, flavorings, food additives, monosodium glutamate, instant powders, glucose, industrial raw materials, PVC powder, ABS powder, etc.

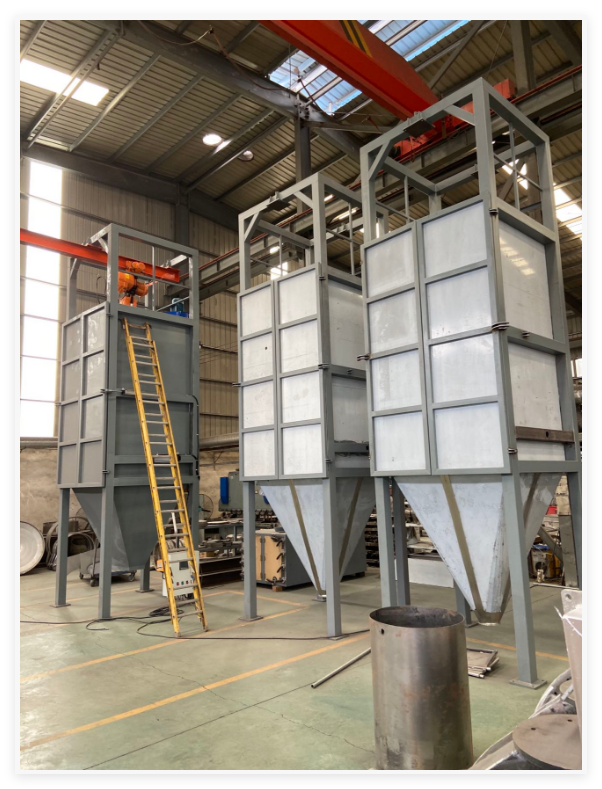

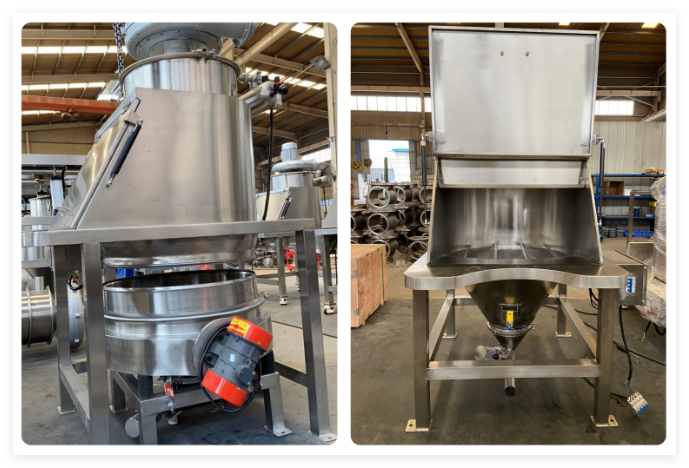

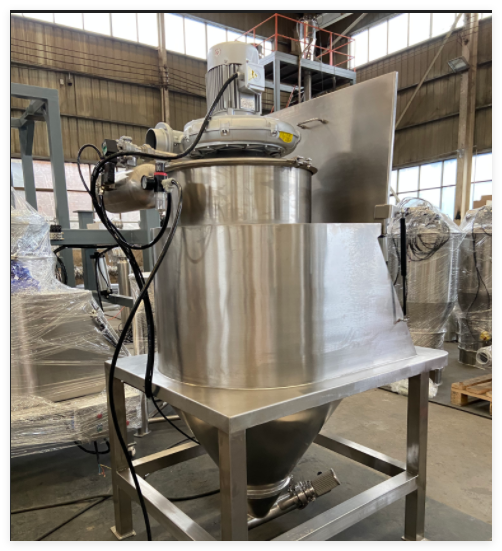

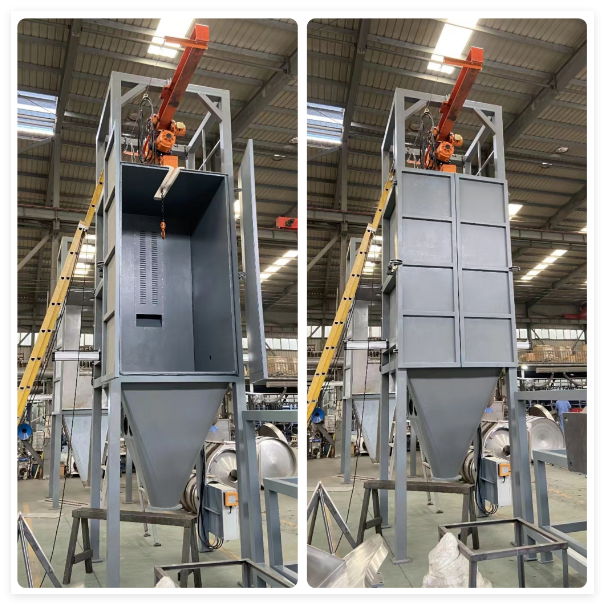

Cases:
| Item | Parameter |
| Feeding hopper dimensions | 800mm*800mm*1200mm |
| Feeding height | 800mm |
| Screening mesh size | 20mesh/40mesh/80mesh (Customization is available upon request.) |
| Vibrating motor | 0.3 Kw |
| Dust collector motor | 1.1 Kw |
| Optional accessories | Dust collectors, bag presses, vibrating hoppers, air hammers, rotary valves, etc. |
