Among numerous devices for solid-liquid separation of slurry, vibrating screens are among the most widely used pretreatment and grading equipment due to their simple structure, high processing efficiency, and convenient maintenance. However, "vibrating screen" is a general term, and there are various internal designs. Choosing the appropriate type is the first step to success.

I. How Does a Vibrating Screen Work?

The core principle of a vibrating screen is to utilize the excitation force generated by a vibrating motor or exciter, forcing the screen box to drive the screen mesh to vibrate at high frequency and small amplitude. After the slurry is poured onto the screen surface, under the action of vibration:

1. Separation: Fine particles sink to contact the screen mesh, while coarse particles float.

2. Passing Through: Particles and liquid (slurry) smaller than the screen aperture size pass through the filter screen under the action of gravity, achieving separation.

3. Conveying: Coarse particles or dewatered solids move forward along the screen surface under the action of vibration and are discharged from the discharge port.

II. Mainstream Types of Vibrating Screens for Solid-Liquid Separation

Based on vibration trajectory and structure, they are mainly divided into the following categories:

1. Linear Vibrating Screen

Working Principle: Two vibrating motors rotate synchronously in opposite directions, generating directional linear excitation force, causing the material to jump linearly on the screen surface.

Advantages: Large processing capacity, fast dewatering speed.

Robust structure, suitable for processing large, high-density materials.

Adjustable screen inclination angle, adaptable to different materials.

Disadvantages: Relatively low screening accuracy.

Easily clogs the screen for sticky, wet, fine powder materials.

Applicable Scenarios: Mainly used for dewatering, desliming, desliming, and screening of coarse-grained materials. Examples include sand and gravel dewatering in sand washing plants and coal slime dewatering and grading in coal preparation plants.

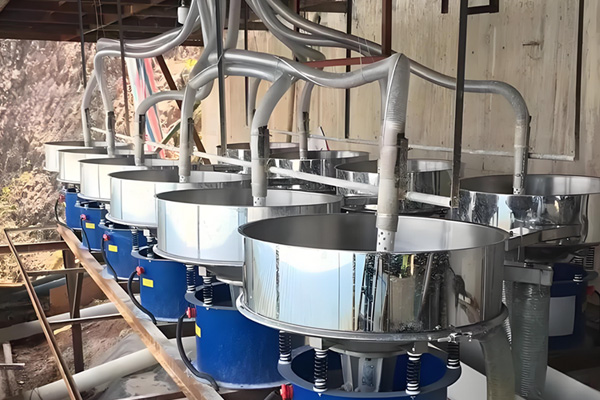

2. Rotary Vibrating Screen (Three-Dimensional Vibrating Screen)

Working Principle: A vertical vibrating motor generates multi-dimensional excitation force, causing the screen surface to produce a complex rotary vibration trajectory (horizontal-vertical-inclined).

Advantages: High screening accuracy, high efficiency, up to 500 mesh.

Material has a long residence time on the screen surface, resulting in more opportunities for material to pass through.

Fully enclosed structure, preventing dust escape.

Easy screen replacement; 1-5 layers of screens can be installed for simultaneous multi-stage grading.

Disadvantages: The throughput of a single-layer screen is lower than that of a linear screen of the same specifications.

Not suitable for handling highly viscous slurries.

Applicable scenarios: Primarily used for fine screening and filtration. Ideal for slurries with strict particle size requirements in the food, chemical, and pharmaceutical industries, such as starch screening, paint filtration, and soybean milk residue removal.

3. High-Frequency Vibrating Screen

Working principle: Employs high-speed, low-amplitude vibration parameters, specifically designed for the dewatering and grading of fine materials.

Advantages: Excellent dewatering effect on fine mud and microparticles.

Effectively breaks the surface tension of water, accelerating water separation.

Disadvantages: Screen wears relatively quickly; high screen quality is required.

No significant advantage when handling coarse particles.

Application Scenarios: Primarily used for dewatering fine-particle, high-viscosity slurries, such as tailings dry stacking, concentrate dewatering, and ceramic slurry dewatering.

The choice of vibrating screen type primarily depends on your slurry characteristics and process objectives.

For high throughput and coarse dewatering → Linear vibrating screen

For high-precision screening and multi-stage grading → Rotary vibrating screen (three-dimensional vibrating screen)

For handling fine-particle, difficult-to-dewater slurries → High-frequency vibrating screen
