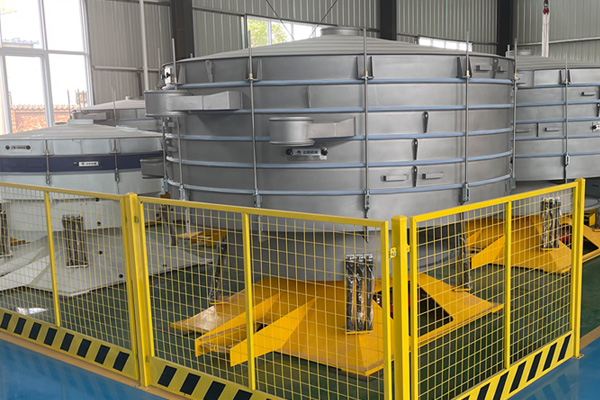

English Translation: Advantages of Modular Matching Application of Circular Tumbler Screens for Production Line Layout Adaptation
When constructing or upgrading screening production lines, equipment compatibility stands as the core concern for most customers. While some screening devices deliver decent standalone separation performance, they suffer from bulky footprint, rigid layout design, poor linkage compatibility with upstream and downstream equipment, and limited application flexibility. These drawbacks lead to high renovation costs for production lines, process connection stagnation and low automation, failing to satisfy diversified manufacturing requirements. Featuring lightweight construction and modular design with adjustable operating parameters, circular tumbler screens can flexibly adapt to various workshop layouts, production processes and automated production lines, making them an all-around screening solution balancing practicality and system compatibility.
1. Advantages in Structural Layout Compatibility
Built with a compact round frame, circular tumbler screens occupy less floor space and deliver superior space utilization compared with rectangular screening equipment. They can be installed in confined workshops, multi-story vertical production lines and fixed assembly lines without large-scale civil modification to plant layout. Equipped with full-perimeter snap-fit quick-disconnect structure, screen frames, mesh panels and sealing components can be rapidly disassembled, cutting downtime for routine cleaning, screen replacement and material grade switching. This design perfectly fits multi-product, small-batch and frequent formulation change production modes and effectively eliminates cross-contamination between different feed materials.
2. Process Adjustability for Full-Scenario Production Matching
Flexible process customization constitutes the core merit for universal production line adaptation. Operators can fine-tune tumbling rotation speed, eccentric stroke as well as radial and tangential inclination angles based on material characteristics and separation standards to precisely control material residence duration and diffusion velocity across the screen deck. By adjusting screen mesh count and deck layers alongside operational parameters, one single unit can fulfill diversified separation tasks including fine grading, coarse impurity removal, multi-stage classification and liquid-solid filtration. The all-in-one design removes extra equipment procurement and additional floor occupation for separate dedicated screening machines, drastically cutting capital investment and workshop space costs.
3. Full-process Automated Linkage in Standardized Production Lines
Circular tumbler screens support seamless interconnection with upstream and downstream machinery to build closed-loop automatic production systems.
Feeding Section
Matching with belt conveyors, screw feeders and vacuum loading machines enables fully enclosed automatic feeding, eliminating human error and airborne dust from manual dosing. Stable and consistent feed flow keeps the screener running under optimal working conditions and avoids mesh blockage or efficiency drop caused by material pile-up at the feed inlet.
Core Screening Section
Optional auxiliary accessories are configurable against different feedstock properties:
Standard dry granular materials: fitted with elastic bouncing ball anti-blinding system to continuously clear plugged apertures and sustain unobstructed screening;
Ultra-fine powder, sticky or electrostatic-prone materials: equipped with ultrasonic mesh cleaning device to resolve particle agglomeration and mesh adhesion, greatly boosting precision for superfine grading;
High-standard hygienic production: complete with fully enclosed dust hood and negative-pressure dust extraction units for zero-dust compliant operation.
Discharging & Post-processing Section
Multi-layer graded outlet design realizes simultaneous separation of multiple particle fractions. Different finished products can be directly connected with corresponding conveying, storage and post-processing equipment:
Qualified fine materials: flow straight into automatic packing machines, storage silos or precision deep-processing units for final finishing;
Medium & coarse fractions: recycled via return conveyors to crushing and grinding machines for secondary refinement to maximize raw material utilization rate;
Oversized impurities: automatically discharged out of the system for effective purification.
The integrated matching production line operates full-automatically with zero manual intervention and smooth equipment handover, solving long-standing pain points of disjointed screening workflows, tedious manual transit and low productivity in conventional processing lines. Furthermore, the equipment is compatible with both greenfield automated line construction and legacy production line retrofitting. It facilitates low-cost upgrade of old workshops by replacing outdated screening units and improves overall standardization and automation level of production processes.
