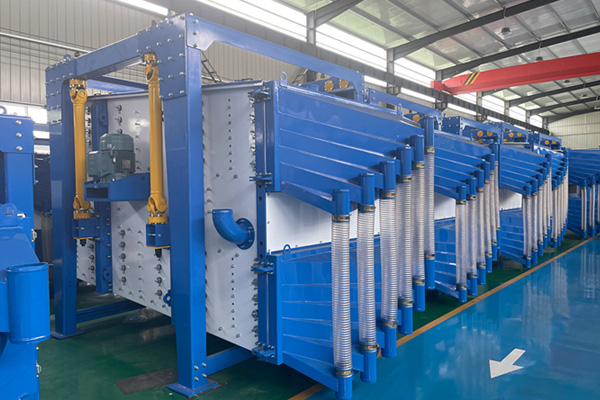

The 2036 square swing screen is composed of a screen box, screen mesh, vibrator, support device, drive motor, etc.

The screening box, usually with a square structure as its main body, can accommodate multiple layers of screens inside and is responsible for carrying and screening materials. Its right-angle structure enables stronger airflow in the boundary area, effectively preventing material accumulation at the edges of the screen frame.

The screen mesh assembly is a key component, typically made of 304 stainless steel or nylon, which is wear-resistant and corrosion-resistant. Different mesh sizes can be selected according to the screening requirements. A bouncing ball cleaning device is installed at the bottom of the screen frame. By utilizing the impact force generated from the movement of the screen body, it can achieve automatic cleaning of the screen.

The exciter, driven by a motor to generate power, can make the screen box swing and shake. The screen mesh simultaneously acquires horizontal rotational force and vertical excitation force. It is the core component of the screen box's movement.

Supporting devices ensure the stability of the screen box. Common structures include universal shafts and spring supports.

The drive motor provides power for the vibrator.

The working principle of the 2036 square vibrating screen

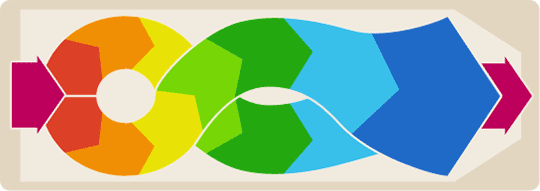

2036 Square Swing Screen Operating Trajectory

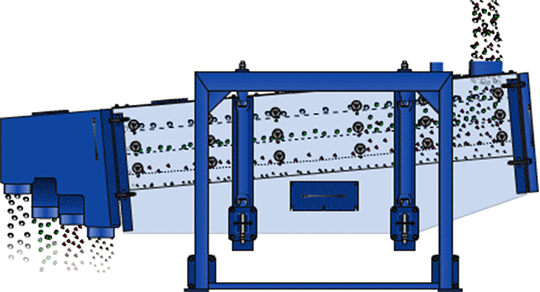

The working principle of the 2036 square swing screen:

By adopting the simulated artificial screening motion, combining "sieve movement" (planar circular motion) and "bucket movement" (throwing materials upwards), the materials are rapidly dispersed across the entire width of the screen at the feed end, driving the particles to move forward and come into contact with the screen surface. This achieves high processing capacity and high screening efficiency.

The features of the 2036 square swing screen:

High screening accuracy, increased production capacity, optional combined discharge, and high utilization rate.

Optional single-feed can be extended to a maximum of 10 layers for the dual-feed design;

More durable, bolted structure, long service life;

Full-range swaying, automatic material discharge, no screening dead zones;

Closed structure, excellent sealing effect, low damage to raw materials;

The self-cleaning net works well and the mesh can be easily replaced.

The square swing screen, as the core equipment product in the intelligent screening field of Xinxiang Maolang Machinery, has gained wide recognition from customers due to its excellent screening and classification capabilities. It has been adopted as a solution in many industry screening production lines. We always adhere to the principles of "quality assurance, reputation first, quality-oriented, and win-win cooperation", and are guided by customer needs to ensure the production of high-quality products with stable performance, excellent quality, attractive appearance, and convenient operation.

Clear and distinct grains, intelligent screening - Mirant Xinxiang Machinery.
