The 1840 gyratory screen features a screen size of 1.8 meters by 4 meters, a screening area of 7.2 square meters, a 7.5-kilowatt motor, and a 76-mm screen stroke. It is suitable for screening materials requiring high throughput and high precision.

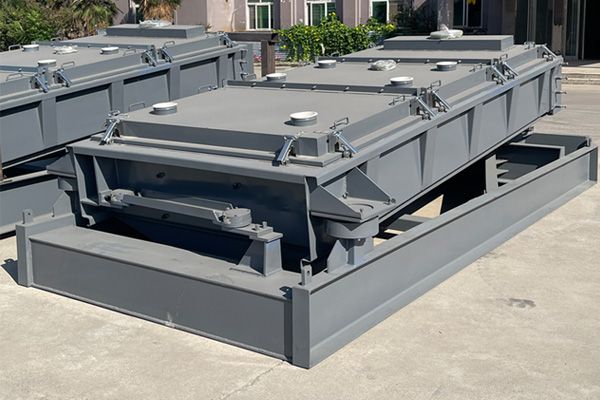

The gyratory screen primarily consists of three modules: the screen box, the vibration exciter, and the elastic support system. The screen box is welded from high-quality manganese steel or 304 stainless steel. Inside, multiple layers of screen mesh with varying apertures are laid according to the design. The surface is specially treated to form a wear-resistant layer that withstands continuous material impact. The vibration exciter, as the power source, generates a stable vibration source through the centrifugal force generated by the eccentric block, ensuring constant amplitude during long-term operation.

Operating Principle of the 1840 gyratory screen:

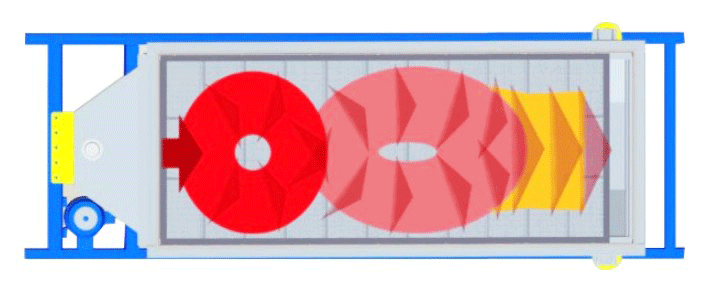

The gyratory screen primarily utilizes the motion of the eccentric block to achieve high-standard fine screening, simulating manual screening. Its motion is a uniform reciprocating gyratory motion, typically with an inclination angle of 3-9 degrees. The drive transmits the motion of the screen box to the chamber. The material moves in a horizontal circular motion at the feed end, gradually transitioning to an elliptical motion along the length, and then to a nearly reciprocating linear motion at the discharge end. After entering the screen through the feed inlet, the inertial force of the material distributes it evenly across the screen surface. Smaller particles at the bottom of the material layer pass through the mesh quickly, while larger particles move toward the discharge end. This results in highly efficient and precise screening.

Features of the 1840 gyratory screen:

High production capacity and high screening accuracy;

High mesh utilization, long life, and excellent self-cleaning performance;

Excellent sealing and low noise;

Limited vertical impact loads on the floor and surrounding structures.

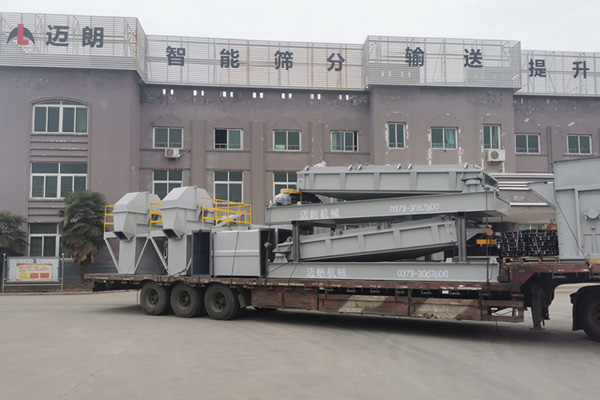

As one of Mirant Xinxiang Machinery's core products in the intelligent screening field, the gyratory screen is used in screening production lines across numerous industries and has earned widespread customer recognition for its superior screening and grading capabilities. We consistently adhere to the principles of "quality assurance, reputation first, quality-oriented, and win-win cooperation," and are guided by customer needs to ensure the production of high-quality products with stable performance, excellent quality, attractive appearance, and easy operation.

Clearly separated particles, intelligent screening—Mirant Xinxiang Machinery.
