While the screen cleaning device is designed to improve screening efficiency, improper configuration can actually accelerate screen wear. A scientifically configured screen cleaning device can effectively reduce screen wear.

Analysis of Screen Cleaning Device Configuration Problems for Square Gyratory Screens:

1. Overly Hard or Too Many Bouncing Balls: Overly hard or excessive bouncing balls will violently impact the screen, becoming a major source of holes in the fine mesh. This is especially true in screening high-hardness materials such as quartz sand, where the continuous impact of hard bouncing balls will significantly accelerate localized screen damage.

2. Failed or Jammed Bouncing Balls: When bouncing balls are worn, detached, or insufficient in number, they cannot effectively clean the screen, leading to material clogging the mesh and further exacerbating screen wear. If there is severe material accumulation in the bouncing ball chamber, ball jamming may occur, potentially breaking the screen.

3. Mismatch between cleaning net material and working conditions

In corrosive or high-temperature conditions, if an unsuitable cleaning net material is selected, the cleaning net itself will age and deteriorate rapidly, not only losing its cleaning function but also potentially causing secondary damage to the screen due to breakage.

Solution: Optimize Screen Cleaning Device Configuration

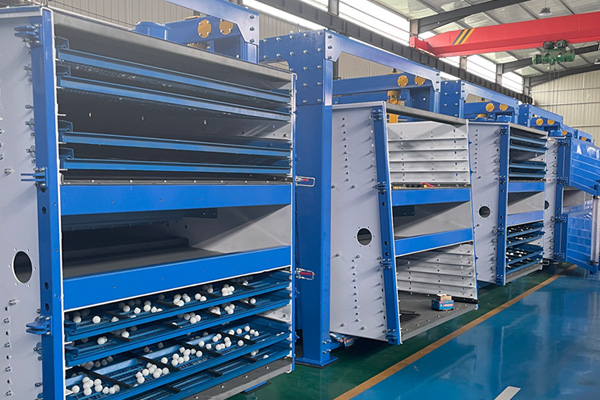

1. Properly Configure Bouncing Balls: Replace hard rubber balls with soft silicone or soft rubber balls to reduce impact force. Appropriately reduce the number of bouncing balls, maintaining a filling rate of approximately 70%, and distribute them evenly to avoid concentrated impact on the screen in one area. Regularly check the bouncing ball chamber and clean any accumulated material promptly to prevent balls from jamming and breaking the screen.

2. Use Ultrasonic Screen Cleaning for Fine Screening: For fine screening operations above 140 mesh, it is recommended to remove the bouncing balls and replace them with an ultrasonic screen cleaning system. Ultrasonic cleaning eliminates physical impact, significantly extending screen life. The ultrasonic screen cleaning system of the new square gyratory screen, with its fully enclosed structure, can control the clogging rate within an ideal range.

3. Timely Replacement of Ineffective Cleaning Balls: Check the quantity and mobility of the cleaning balls monthly. Replace or replenish any worn or missing bouncing balls promptly. Severely worn cleaning balls should not be used to avoid secondary wear due to breakage.

4. Regularly check the flatness of the screen frame. If the screen frame has burrs or is uneven during the impact of the bouncing balls, it will increase friction between the screen and the frame. Burrs and welding slag on the screen frame should be ground off, and the contact surfaces polished to reduce additional mechanical wear.

5. Establish a cleaning ball maintenance system. It is recommended to establish a standardized cleaning ball maintenance system: check the cleaning ball and other devices monthly to maintain effective working condition. Clean the accumulated sand in the bouncing ball compartment to ensure sufficient space for the cleaning ball to move.

The screen cleaning device is a crucial guarantee for the efficient screening of a square gyratory screen, but if improperly configured, "screen cleaning" can actually "damage the screen." The core principle for correctly selecting and configuring the screen cleaning device is: "Screen cleaning without damaging the screen." For fine screening operations, ultrasonic screen cleaning is the best choice to avoid physical damage; for normal operating conditions, soft silicone balls with a reasonable filling density and distribution can also achieve a good balance between screen cleaning effect and screen protection. Enterprises should scientifically select screen cleaning methods based on their material characteristics and screening accuracy requirements, and establish standardized maintenance systems to truly achieve the triple goals of "extending screen life, reducing operating costs, and improving screening efficiency."
