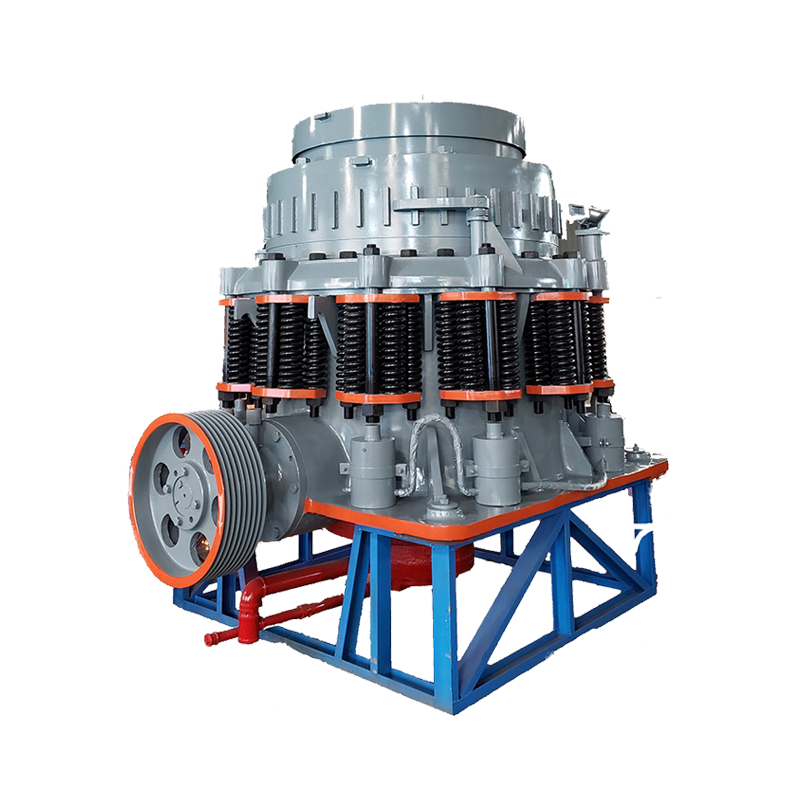

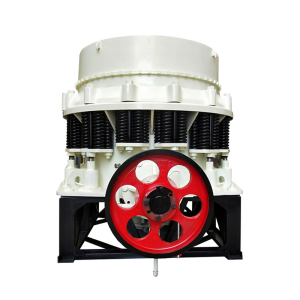

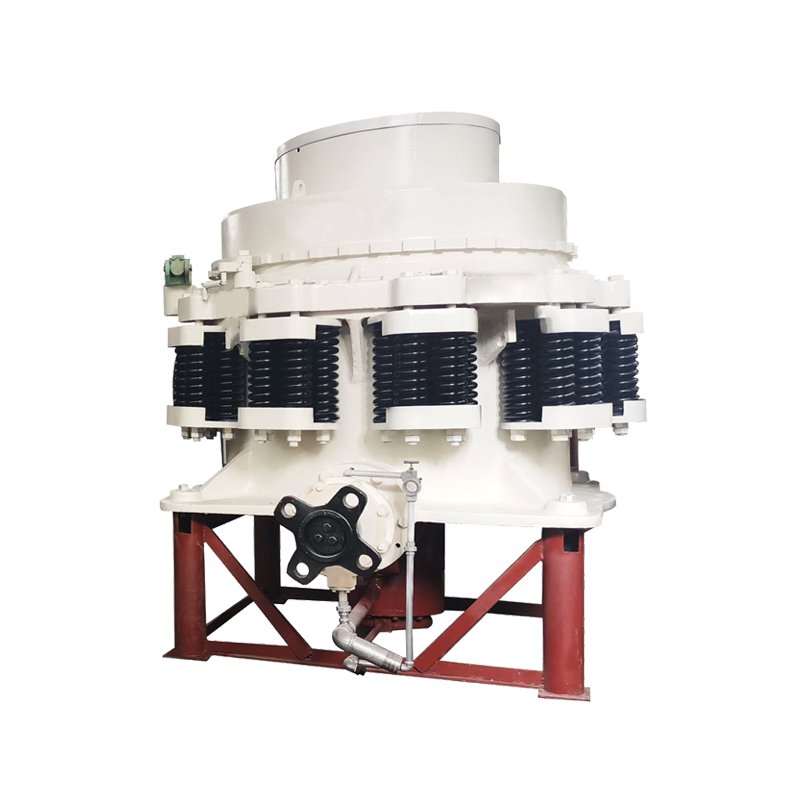

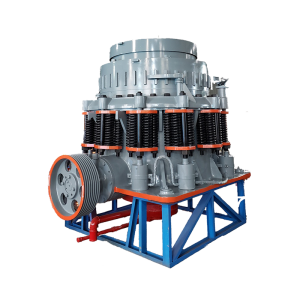

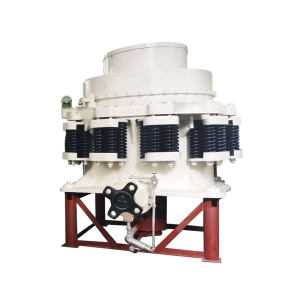

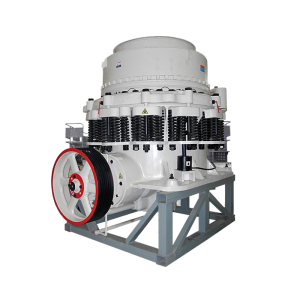

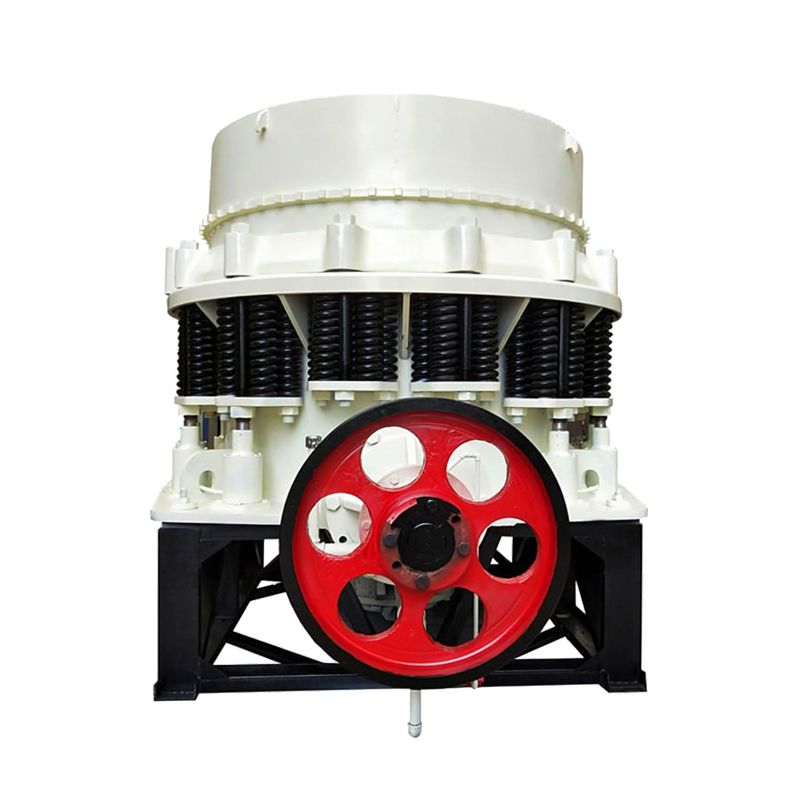

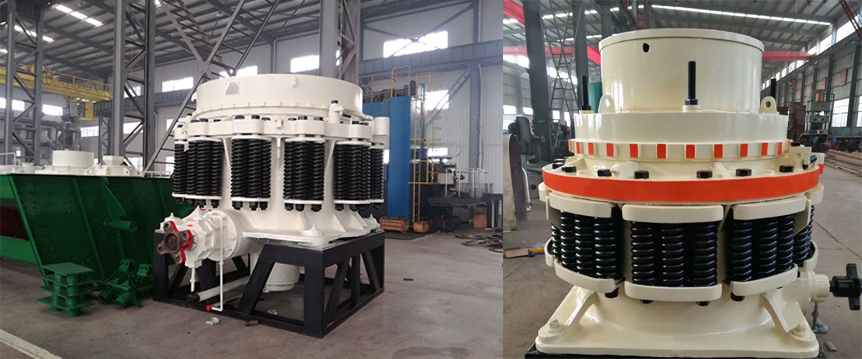

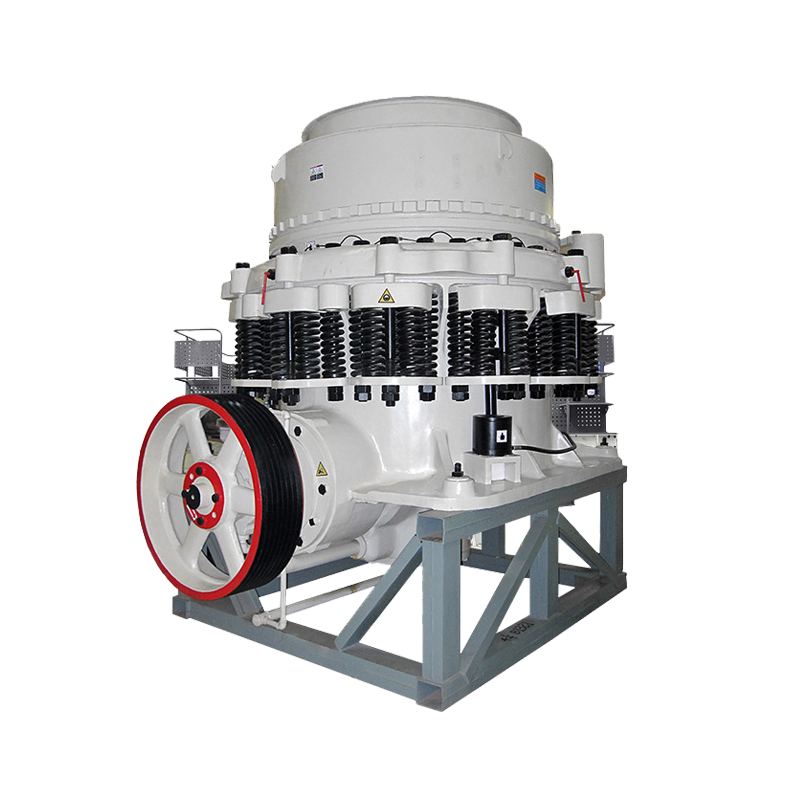

Mirant's Spring Cone Crusher is suitable for medium hardness ores and rocks. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economic use. The spring safety system plays an overload protection role and can handle hard materials (such as iron ore, copper ore, limestone, quartz, granite, sand and gravel, etc.).

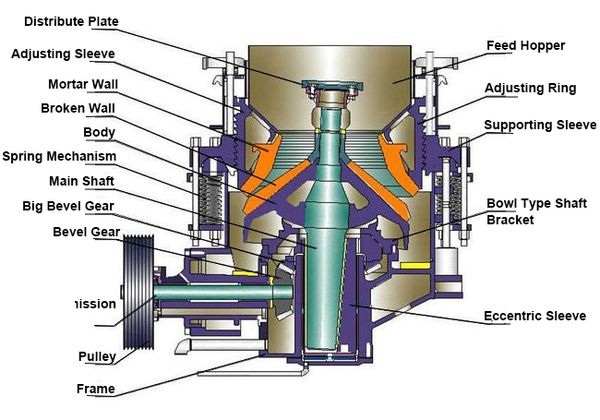

When the Spring Cone Crusher is working, the motor drives the eccentric bearing sleeve through the spring coupling, the transmission shaft and a pair of bevel gears. The crushing cone shaft is forced to swing under the action of the eccentric bearing bush, so that the ground is sometimes close to the bowl liner and sometimes away from the bowl liner. The raw materials are squeezed and impacted, and finally crushed in the crushing chamber.
1. Stable running performance and easy operation.
2. High productivity, low consumption and low wear cost
3. Stable cone gear transmission device.
4. Various crushing chambers to meet the needs of different customers.
5. Reduce machine downtime.
Model | Broken Cone Diameter mm | Max Feeding Size mm | Discharge outlet width mm | Capacity t/h | Power kw | Weight |
PYB600 | 600 | 65 | 12-25 | 40 | 30 | 5 |
PYD600 | 35 | 3-13 | 12-23 | 5.5 | ||
PYB900 | 900 | 115 | 15-50 | 50-90 | 55 | 11.2 |
PYZ900 | 60 | 5-20 | 20-65 | 11.2 | ||
PYD900 | 50 | 3-13 | 15-50 | 11.3 | ||
PYB1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 24.7 |
PYZ1200 | 100 | 20-50 | 42-135 | 25 | ||
PYD1200 | 50 | 8-25 | 18-105 | 25.3 | ||
PYB1750 | 215 | 25-50 | 180-360 | 50.3 | ||
PYZ1750PYD1750 | 1750 | 185 85 | 10-30 5-13 | 80-210 60-180 | 160 | 50.3 50.2 |
PYB2200 | 2200 | 300 | 30-60 | 420-700 | 280-260 | 80 |
PYZ2200 | 230 | 10-30 | 130-410 | 80 | ||
PYD2200 | 100 | 5-15 | 80-200 | 81.4 |
Pre-sale services:
1. Advice of model choice.
2. Design and manufacture machines according to customer's special requirements.
3. View our Factory.
After-sale services:
To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
