CONVEYOR EQUIPMENT
Vibration Conveyor Equipment
Vibration Conveyor Equipment (also know as vibration feeder,refers to a kind of equipment which can evenly,regularly and continuously give bulk and granular materials from the storage bin to the receiving device. In the production line of sand and stone,it can continuously and evenly feeding for crushing machinery and screening of coarse material.
Category:CONVEYOR EQUIPMENT
Online Service
LEAVE MESSAGE
*Introduce Yourself
*Phone Number
*Message

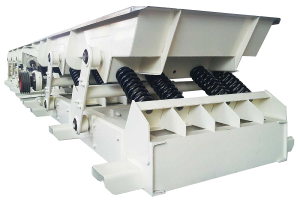

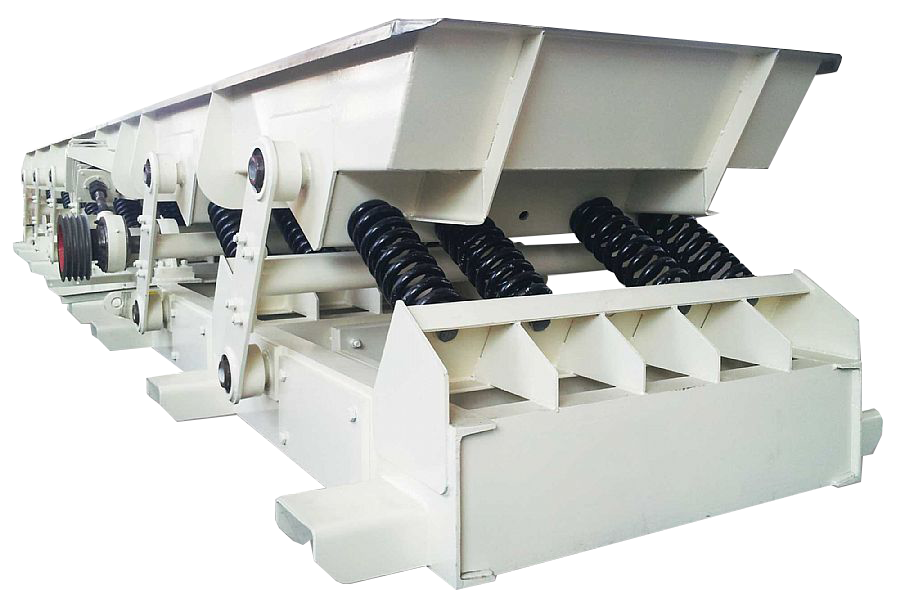

Vibration Conveyor Equipment
Vibration Conveyor Equipment

Vibation Conveyor Equipment(also know as vibration feeder,refers to a kind of equipment which can evenly,regularly and continuously give bulk and granular materials from the storage bin to the receiving device.In the production line of sand and stone,it can continuously and evenly feeding for crushing machinery and screening of coarse material.





 Working Principle:

Adopts two vibration motor as vibration source,using the principle of self synchronous make the two vibration motor reverse rotation,which can reciprocate vibration of the balance of the bottom of the conveyor frame, drives the upper conveying groove vibration by the reed and guide plate spring, so as to achieve the purpose of material conveying.

Features&benefits:

1. Small nonrotating parts,Small volume,low weight easy installation and easy maintenance

2. It has the advantages of low consumption and high efficiency.

3.Adopt variable frequency control and feed quantity can be adjust.

4.It’s can realize centralized control and automatic control of production process.




Application

Application:

It is widly used in the combined equipment of crushing and screening in Metallurgy,Coal mine, Mineral processing,Building,Chemical industry,abrasieve and other industries.

微信图片_20200708162555



Technical Parameter

Model No.MCG300MCG400MCG600
MCG800
Conveying distance by single conveyor(M)5-25
8-25

Conveying capacity      (T/H)

≤15≤25≤40  ≤60
Power(KW) 3-7.5
5.5-15
Weight of equipment    (KG/M)300 500  700  800
Materal property granularity(MM)
200
Material property temperature(℃)300
Material property water content and viscidityNon viscous and no flammable materials which the water content is below 5%

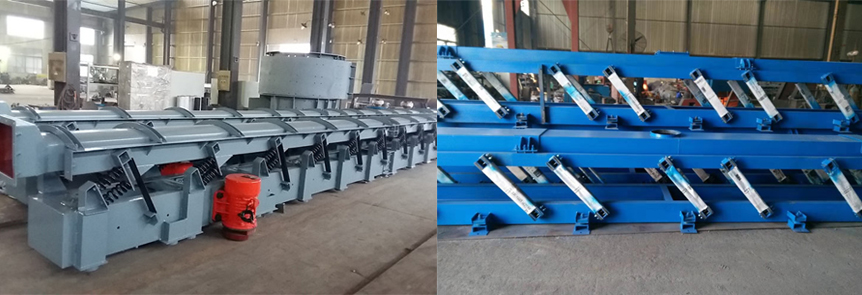

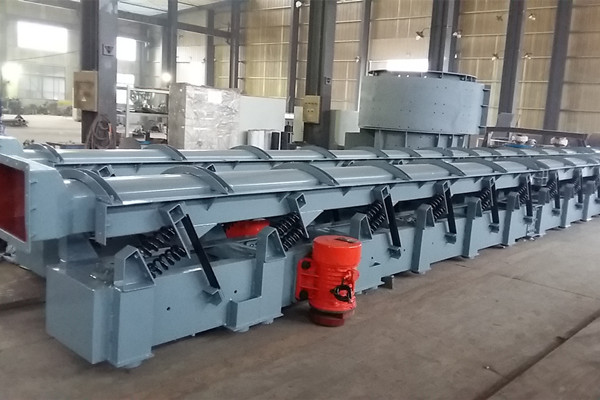

Real Case

微信图片_20200708162543


FAQ:

Q1:WHow to solve the problem of blocking mesh?

All of most vibrating screen adopts bouncing ball and PU ring below every deck to cleaning screen surface,except the ultrasonic vibrating screen adopts ultrasonic cleaning systerm.

Q2:How to seal the machine?

Between two decks, it’s adopt silica gel ring to seal.Then the clamp would lock two decks tightly with the extended copper nut.


Q3:Could this machine be refitted and designed technology to suit our production line?

Yes.All of machines in our factory could be customized by client’s specific requirement such as the height from outlet to ground,the inlet shape&outlet shape,and the gate design on first deck.and the gate design on first deck.


Q4:How can i get the spare parts for machine?

The matched spares, such as dampling spring,Screen mesh,clamp screws and nut could be ordered one set or more as customer's need.
