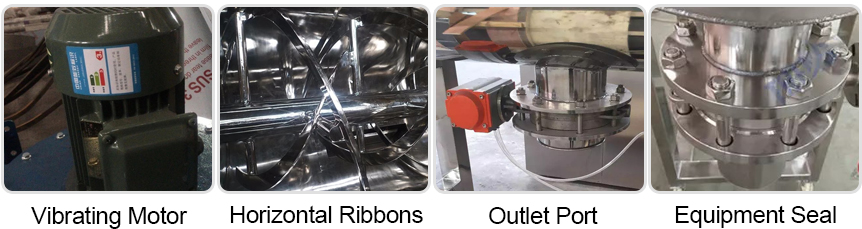

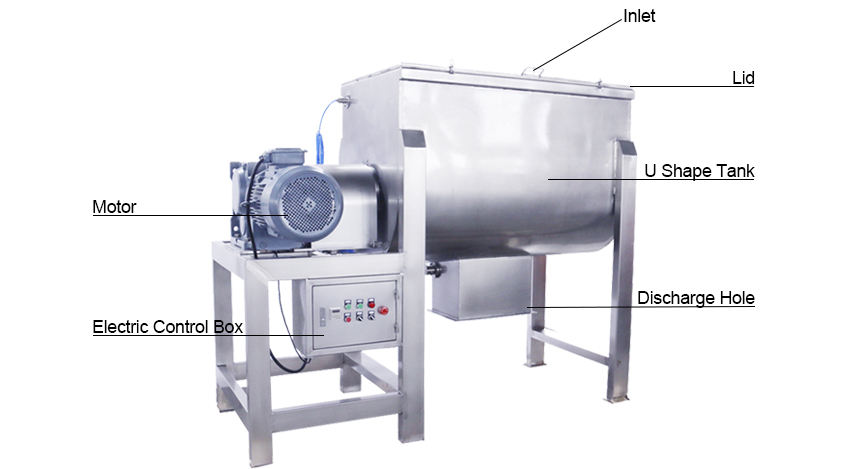

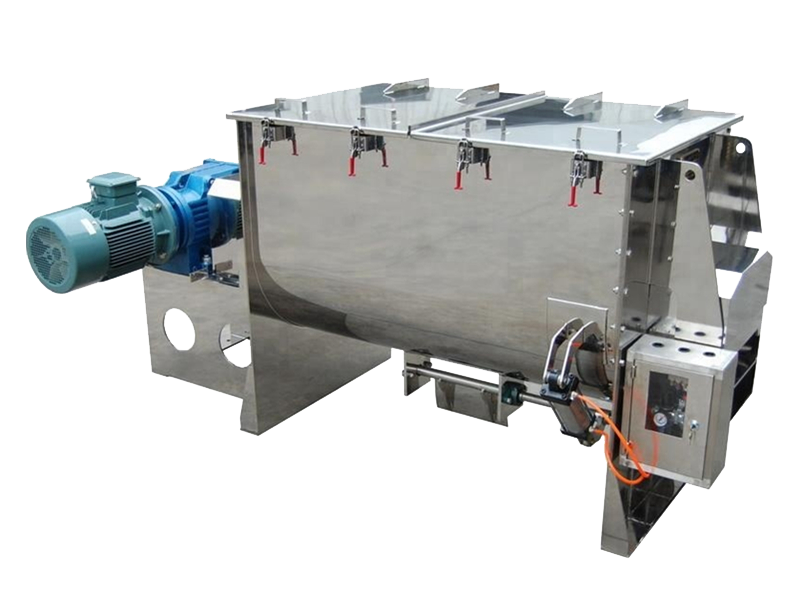

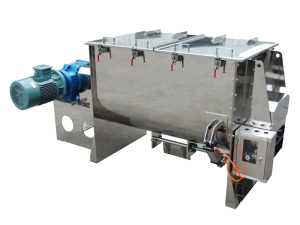

Mirant's Horizontal Ribbon Mixer is basically composed of a wet bin, a stirrer, and a drive device. A stirrer shaft with double layers of spiral ribbons wound in different directions is installed in the U-shaped tubular bin. The outer spiral ribbon is driven by power, and its winding form matches the rotation direction to push the material from both ends of the U-shaped bin to the central zone, while the inner spiral ribbon pushes the material from the middle to both ends, forming convection mixing.
A discharge port is opened in the center of the bottom of the horizontal cylinder of the mixer. The spiral structure of the outer spiral ribbon matches the rotation direction of the main shaft to drive the material inside the cylinder wall to the central discharge port to discharge, ensuring that there is no dead angle in the discharge of materials in the cylinder.
Mirant's Horizontal Ribbon Mixer is a pioneer product researched and a new high-efficiency mixer, which is widely used in the Solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing inthe field of chemical industry, pharmacy, foodstuff industry etc.
Model | Barrel Volume | Loading Volume | Mixing Time | Stir Motor | Weight |
MLDH-100 | 100L | 30-60L | 0-99min | 1.5-4kw | 320kg |
MLDH-300 | 300L | 100-180L | 0-99min | 3-5kw | 510kg |
MLDH-500 | 500L | 200-300L | 0-99min | 4-11kw | 920kg |
MLDH-1000 | 1000L | 400-600L | 0-99min | 75-15kw | 1450kg |
MLDH-1500 | 1500L | 600-900L | 0-99min | 11-18.5kw | 1950kg |
MLDH-2000 | 2000L | 800-1200L | 0-99min | 18.5-30kw | 3160kg |
MLDH-3000 | 3000L | 1200-1800L | 0-99min | 18.5-30kw | 3300kg |
MLDH-4000 | 4000L | 1600-2400L | 0-99min | 22-37kw | 3620kg |
MLDH-6000 | 6000L | 2400-3600L | 0-99min | 37-55kw | 5400kg |
MLDH-8000 | 8000L | 3200-4800L | 0-99min | 37-55kw | 6880kg |
MLDH-10000 | 10000L | 4000-6000L | 0-99min | 45-75kw | 7900kg |
Q1: Why choose our machine?
A: Our company are specializing in all kinds of vibration screen more than 15 years. We have professional team to research and develop new and unique vibration.
Q2: What's material will you mixing? Do they dry powder or liquid?
EM: Grain, Liquid, sand.......
Q3: How much capacity do you expect?
Like: 200kg/h
Q5: What's usually power ______Voltage ______Frequency in your city?
Various power voltage: 110V 200V 240V 380V 415V 450V 550V
Power Frequency: 50HZ 60HZ or Single phase electricity
Q6: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of the most of our customers at home or abroad.
Q7: How do your after-sale service work if the product got damaged?
A: During the maintenance period, our general after-sale service is changing the damaged parts for the customer. Normally, we will provide on-site guidance.
