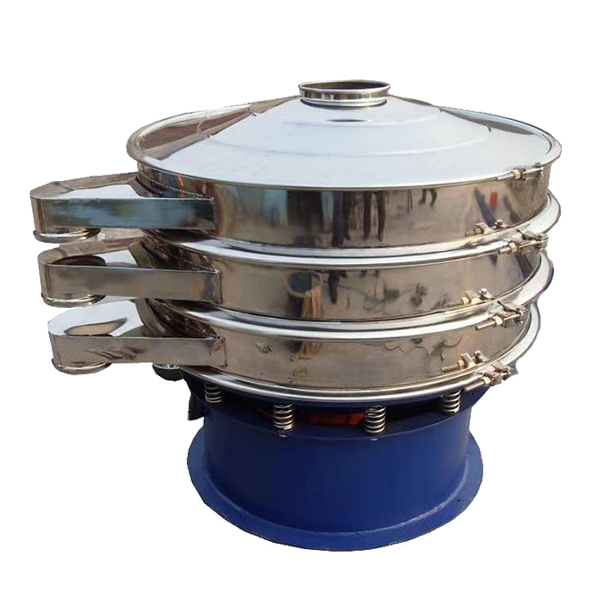

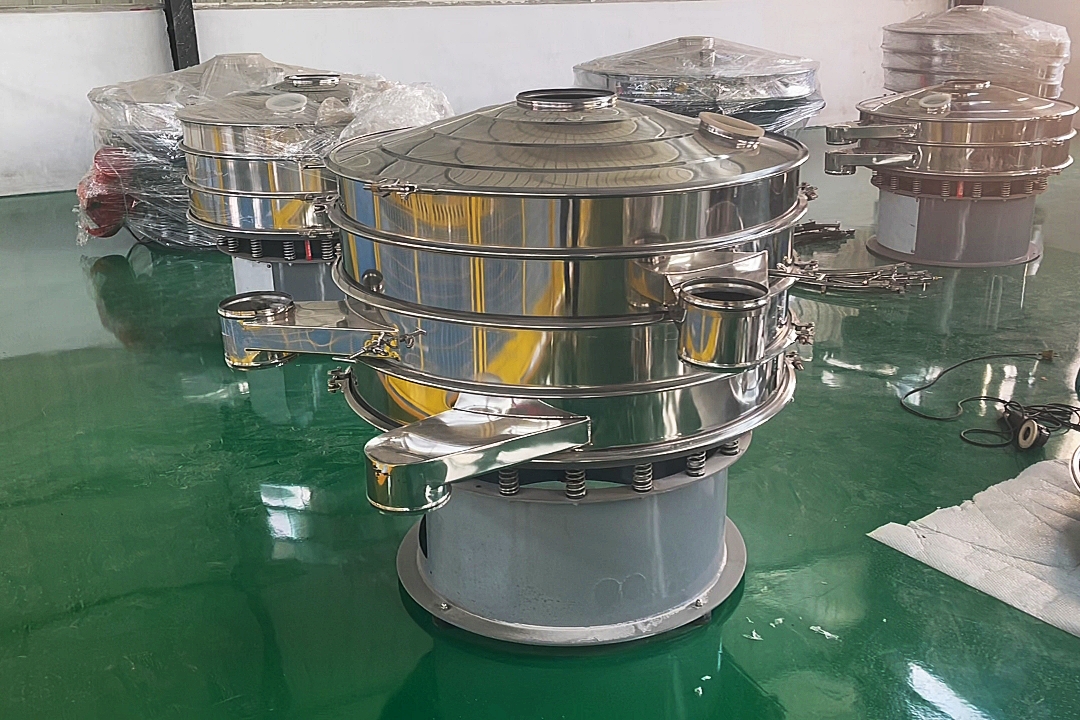

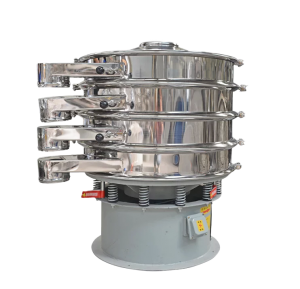

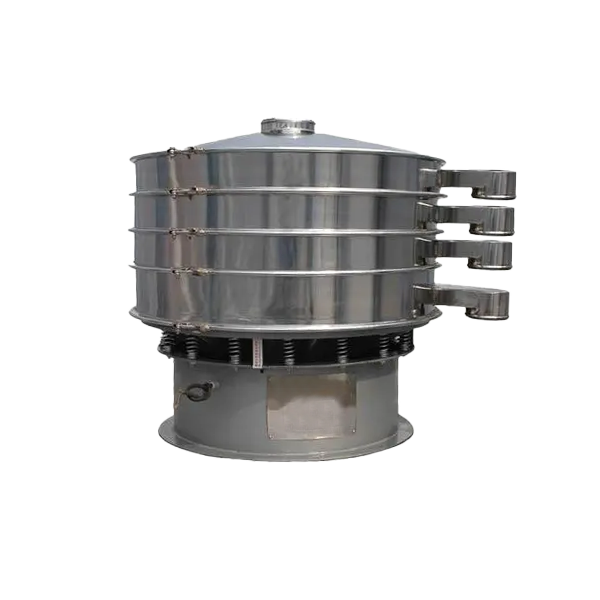

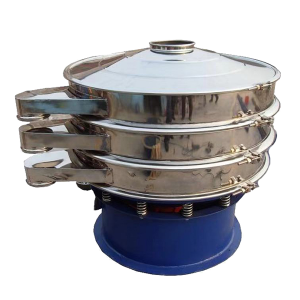

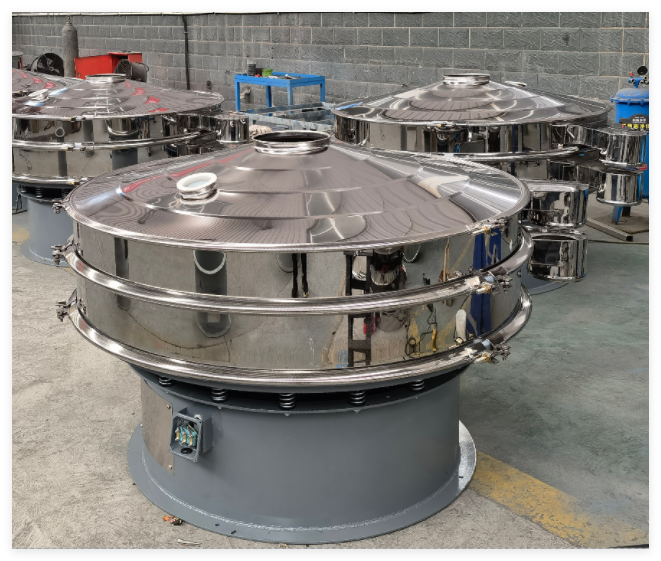

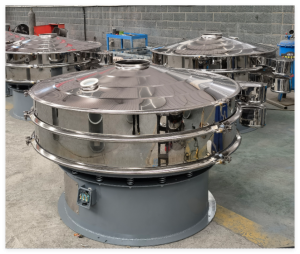

Mirant's Rotary Vibrating Screen (also called Three-dimensional Vibrating Screen) is a high-precision fine powder screening machine with low noise, high efficiency and fast screen changing speed (only 3-5 min.). Its fully enclosed structure is suitable for screening and filtering of granular, powdery, mucous and other materials without dust.
It provides reliable material separation, grading, impurity and other solutions for different industries. It is widely used in processing flour, sugar, spices, chemicals and other dry or liquid filtration.

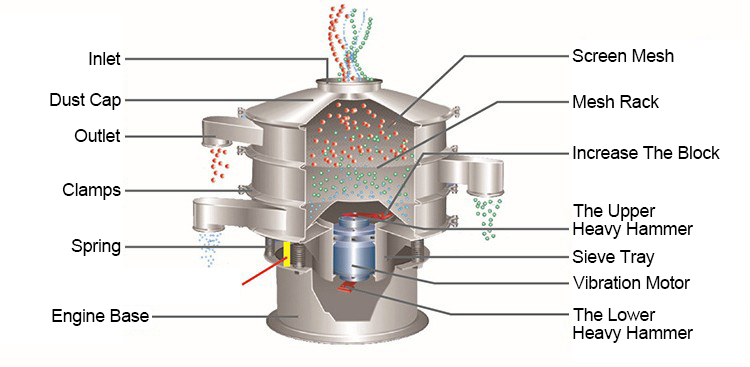

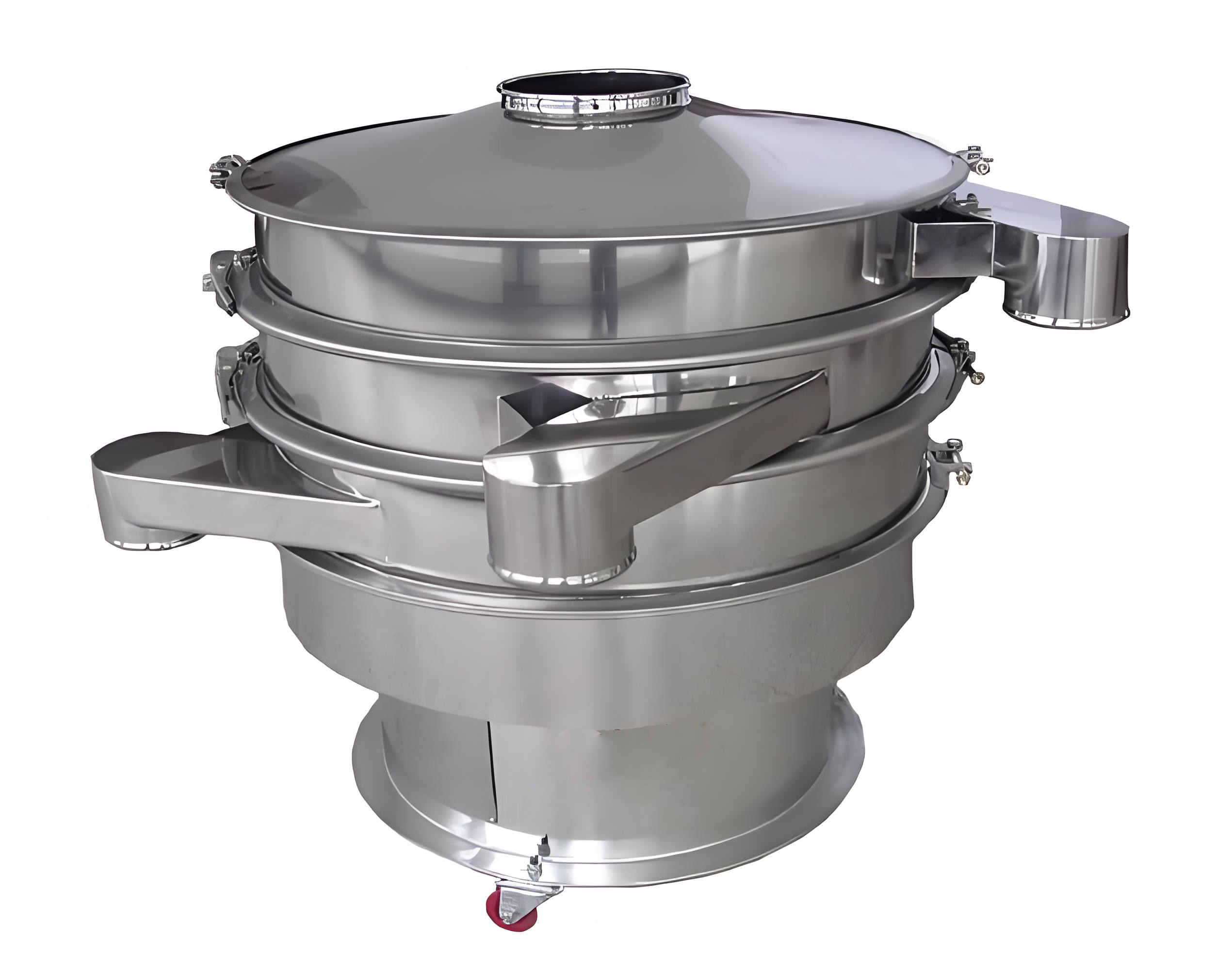

Mirant's Rotary Vibrating Screen uses a vertical motor as the excitation source. Eccentric weights are installed at the upper and lower ends of the motor to convert the motor's rotational motion into horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface, so that the material moves outward on the screen surface. Involute motion, so this series of vibrating screens is also called a three-dimensional vibrating screen. It has the advantages of long material running track and high screen surface utilization. By adjusting the phase angle of the weights at the upper and lower ends, the material's motion track on the screen surface can be changed, and the material can be finely screened, generally screened, probability screened, and specially screened.
1. High screening accuracy and efficiency.
2. Small size, less weight, easy to move, and the direction of the discharge port is adjustable.
3. The screen has a long service life and is easy to clean and replace.
4. Easy to operate, and the impurities and coarse materials can be discharged automatically.
5. Screen cleaning with elastic ball and ultrasonic.
The three-dimensional Vibrating Screen is suitable for screening and filtering of materials such as particles, powders, and mucus. It is widely used in the food, pharmaceutical, paper, sand and gravel, ceramic, chemical, coating and rubber industry, etc.
Model | XZS-400 | XZS-600 | XZS-800 | XZS-1000 | XZS-1200 | XZS-1500 | XZS-1800 |
Effective screen dia. (mm) | 340 | 540 | 730 | 900 | 1100 | 1400 | 1700 |
Mesh(mm) | 2-500 | ||||||
No. of screen layers | 1--5 | 1--3 | |||||
Power(kw) | 0.18 | 0.25 | 0.55 | 0.75 | 1.1 | 2.2 | 4 |
Overall Dimension | |||||||
A(mm) | 330 | 530 | 680 | 800 | 985 | 1190 | 1540 |
B(mm) | 305 | 430 | 580 | 700 | 855 | 1050 | 1440 |
C(mm) | 240 | 240 | 240 | 240 | 400 | 400 | 400 |
D(mm) | 400 | 600 | 800 | 970 | 1170 | 1470 | 1770 |
E(mm) | 80 | 100 | 125 | 150 | 180 | 200 | 200 |
F(mm) | 70 | 70 | 90 | 100 | 120 | 120 | 120 |
G(mm) | 320 | 430 | 540 | 645 | 750 | 930 | 1025 |
I(mm) | 390 | 420 | 435 | 445 | 555 | 556 | 680 |
H(mm) 1 layer | 635 | 780 | 850 | 865 | 1035 | 1070 | 1225 |
H(mm) 2 layers | 770 | 897 | 1000 | 1015 | 1205 | 1250 | 1395 |
H(mm) 3 layers | 870 | 1013 | 1150 | 1165 | 1375 | 1425 | 1560 |
Q1: What's main purpose of purchasing our machine?
Like: sieving flour powder & konjac flour
Q2: What's raw material name? Bulk density (kg/m³）and water content (%)?
EM: Grain,Liquid,sand.......
Q3: How much mesh size do you want ( mesh size of each layer)?
Single layer or Multi-lyayer is available. it's also can be customized by your requirements.
Q4: What's usually local power supply Voltage& Frequency in your city?
Various power voltage: 110V 200V 240V 380V 415V 450V 550V
Power Frequency: 50HZ 60HZ or Single phase electricity
Q5: What's material for machine do you need?
A Stainless steel 304
B Carbon steel Q235
C Touching parts SUS304
Q6: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of the most of our customers at home or abroad.
Q7: How do your after-sale service work if the product got damaged?
A: During the maintenance period , our general after-sale service is changing the damaged parts for the customer. Normally, we will provide on-site guidance.
