It can process various coarse, medium and fine materials (granite, limestone, concrete, etc.) with side length less than 500mm and compressive strength less than 350MPa. It is mainly used in mining, construction, chemical, electric power, metallurgy and other industries.
This machine is not suitable for crushing ores or sticky materials with surface moisture content greater than 8-10%. Its output size is adjustable and various crushing specifications are available.

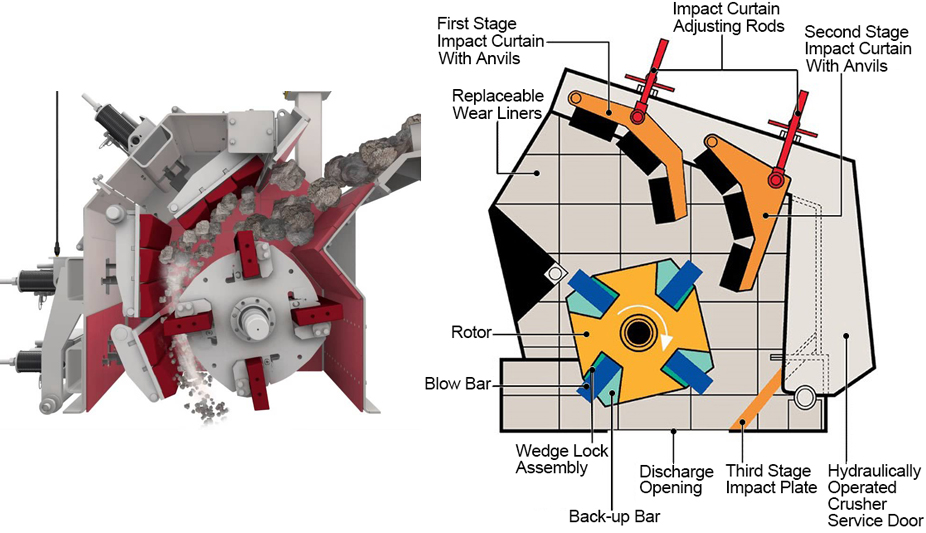

1. Special structure, keyless connection, high chrome plate hammer, special impact bushing.
2. Low power consumption and high efficiency.
3. Large feed inlet, high crushing chamber, suitable for high hardness materials.
4. High productivity, small mechanical wear and high comprehensive benefits.
5. Simple structure, small size, light weight, high production capacity and low production cost.
6. Large crushing ratio, up to 40, reducing the equipment cost of the ore dressing plant.
Model | Specification (mm) | Openning Size (mm) | Max size of material (mm) | Capacity (t/h) | Power (kw) | Weight (kg) |
| MFP-0807 | Φ850*700 | 400*730 | 300 | 15-30 | 37 | 6500 |
| MFP-1008 | Φ1000*800 | 400*830 | 300 | 30-60 | 55 | 10500 |
| MFP-1010 | Φ1000*1050 | 400*1080 | 350 | 50-90 | 75 | 12500 |
| MFP-1210 | Φ1250*1050 | 400*1080 | 350 | 70-130 | 110 | 15800 |
| MFP-1214 | Φ1250*1400 | 400*1430 | 400 | 100-180 | 132 | 19800 |
| MFP-1315 | Φ1320*1500 | 860*1520 | 500 | 160-250 | 200 | 24000 |
| MFP-1320 | Φ1320*2000 | 860*2030 | 500 | 300-350 | 315 | 29000 |
1. Advice of model choice.
2. Export standard package or according to the requirements of the client.

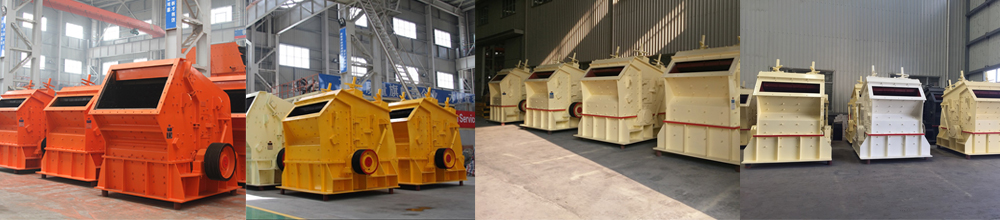

3. View our Factory.
To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
