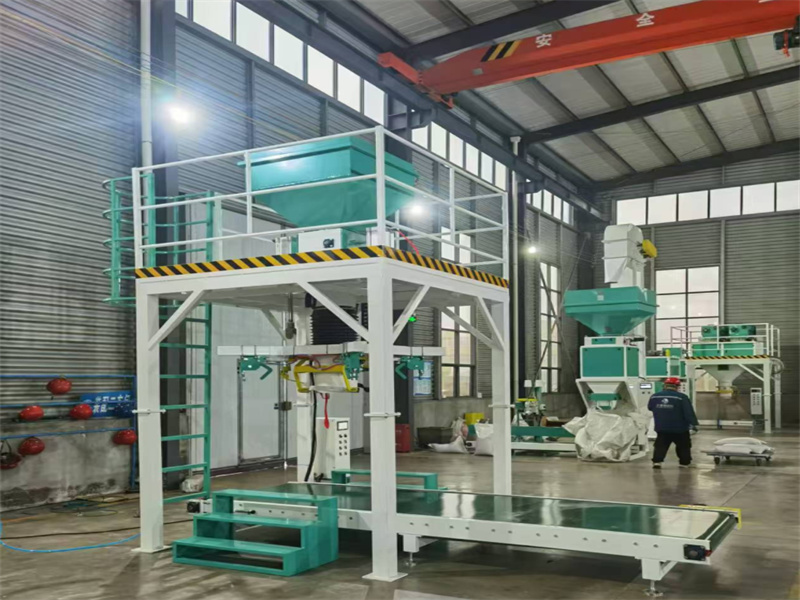

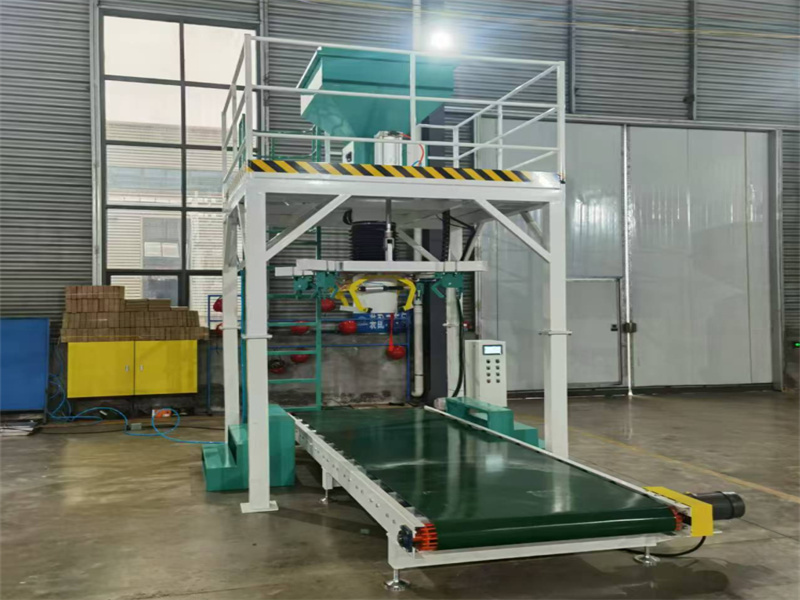

Automatic Bag Filling Machine
Mirant Automatic Bag Filling Machine is designed for bulk bag packaging of powder and granular materials with good fluidity. The lifting cylinder is lowered to a suitable height, and the ton bag is manually put on the discharge port. The start switch is pressed, and the equipment automatically fills. When the filling reaches the set weight, the filling stops, and the cylinder is lowered to a suitable height, and the gripper is automatically released. The finished product is placed on the pallet below and is manually pulled away by a trolley to the warehouse for storage.
Category:CONVEYOR EQUIPMENT
Online Service
LEAVE MESSAGE
*Introduce Yourself
*Phone Number
*Message
Automatic Bag Filling Machine
Automatic Bag Filling Machine

Mirant Automatic Bag Filling Machine is designed for bulk bag packaging of powder and granular materials with good fluidity. The lifting cylinder is lowered to a suitable height, and the ton bag is manually put on the discharge port. The start switch is pressed, and the equipment automatically fills. When the filling reaches the set weight, the filling stops, and the cylinder is lowered to a suitable height, and the gripper is automatically released. The finished product is placed on the pallet below and is manually pulled away by a trolley to the warehouse for storage.

Technical Parameter

Standard Configuration

Main scale body/control system

Feeding method

Three-speed gravity feeder

Bag clamping way

Double cylinder belt bag clamp

Weighing range ( kg )

500-1000

Weighing accuracy

±0.2%

Weighing quantity

(bags / hour)

20-30

Height

3268mm

Power and gas consumption

 0.4—0.6Mpa compressed air  1m3/h

Scope of application

                  Particles
